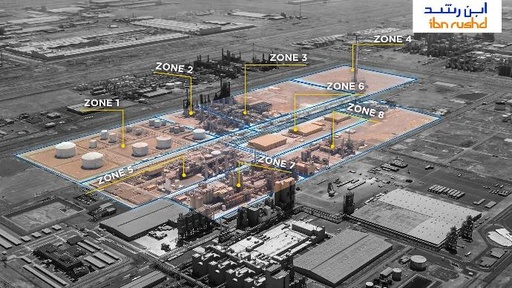

The plant is divided into ZONES, and each zone consists of a list of units/equipment.

ZONE 1
Aromatics Plant Tank Farm

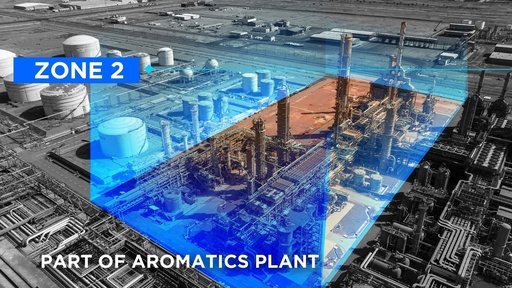

ZONE 2
Part of Aromatics Plant

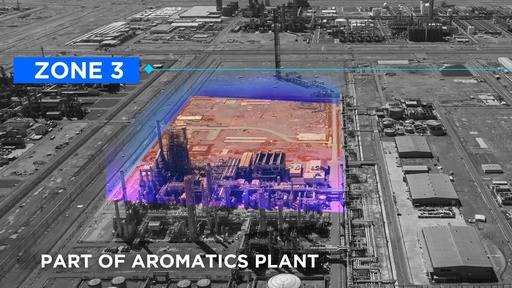

ZONE 3
Part of Aromatics Plant

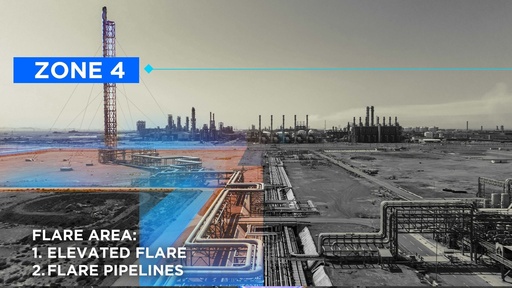

ZONE 4
1. Elevated Flare
2. Flare Pipelines

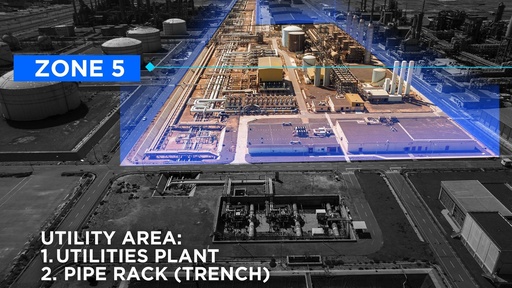

ZONE 5
1. Utilities Plant
2. Pipe Rack (trench)

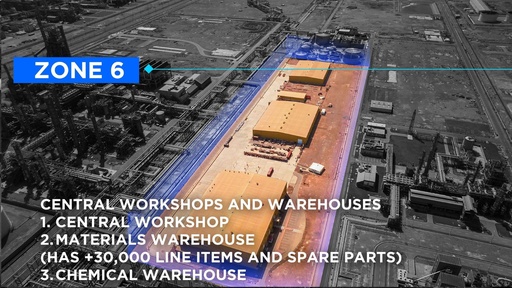

ZONE 6
1. Central Workshop
2. Materials Warehouse
3. Chemical Warehouse

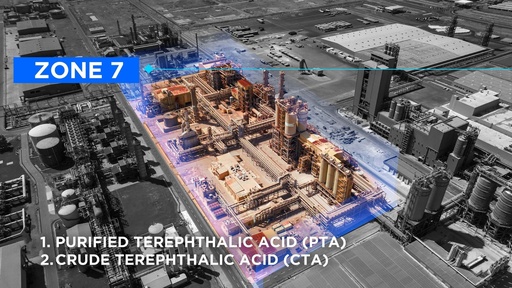

ZONE 7
1. Purified Terephthalic Acid (PTA)
2. Crude Terephthalic Acid (CTA)

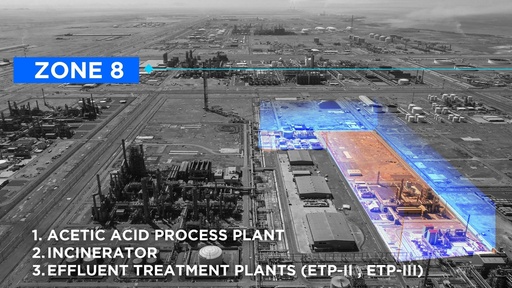

ZONE 8
1. Acetic Acid Process Plant
2. Incinerator
3. Effluent Treatment Plants (ETP-II , ETP-III)
