Total Line Items: 242
Total Quantity: 19,203
Book Value: 4.2 Million SAR
Location: Riyadh, Saudi Arabia
Standard: ISO 9001:2015, ISO 14001:2015, ISO 45001:20187

1. Acetic Acid Process Plant
2. Incinerator
3. Effluent Treatment Plants (ETP-II , ETP-III)

1. Purified Terephthalic Acid (PTA)
2. Crude Terephthalic Acid (CTA)

1. Central Workshop
2. Materials Warehouse
3. Chemical Warehouse

1. Utilities Plant
2. Pipe Rack (trench)

1. Elevated Flare
2. Flare Pipelines

Part of Aromatics Plant

Part of Aromatics Plant

Aromatics Plant Tank Farm

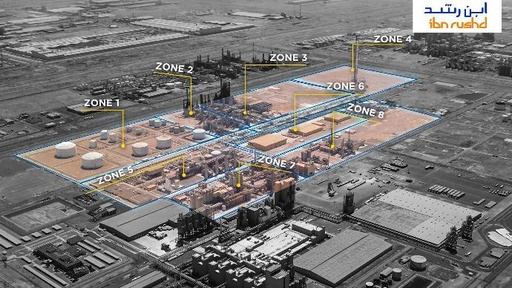

The plant is divided into ZONES, and each zone consists of a list of units/equipment.

ZONE 1
Aromatics Plant Tank Farm

ZONE 2
Part of Aromatics Plant

ZONE 3
Part of Aromatics Plant

ZONE 4
1. Elevated Flare
2. Flare Pipelines

ZONE 5
1. Utilities Plant
2. Pipe Rack (trench)

ZONE 6
1. Central Workshop
2. Materials Warehouse
3. Chemical Warehouse

ZONE 7
1. Purified Terephthalic Acid (PTA)
2. Crude Terephthalic Acid (CTA)

ZONE 8
1. Acetic Acid Process Plant
2. Incinerator
3. Effluent Treatment Plants (ETP-II , ETP-III)

WORM: FFT: 120D X 702; FOR MODIFIER PUMP TYPE EG DRIVE; FOR MODIFIER DRIVE ELEMENT; TAG# P-9407A/B; LDPE USE; DO NOT SUBSTITUTE, Mnfr: LEWA GERMANY Mnfr Part No: 0816290178, DRAWING: 1069850000/0G/00 Rev: 0 Item: POS 19, SPL: 1013650002 Rev: 0
Stock Number 532038

VALVE: TYPE DUST FILTER ROTARY, VALVE SIZE 6 IN, DESIGN RATING 150 LB, BODY MATERIAL CAST IRON EN 1561, CONNECTION FLANGED RF, OPERATED GEARED MOTOR, APPLICATION HANDLING OF FLUIDS, FFT:ROTOR OPENED, WITH PU FINS; +/-0.5 BAR AND 1.1 L/TURN; LIDS MATERIAL: CAST IRON, ROTOR MATERIAL: CARBON STEEL ST-37, MNFR: GORCO S.A MNFR PART NO: ERS-150C (2947), MNFR DRG 205695 CL REV: 2 ITEM NO: UNK
Stock Number 1523092

VALVE: TYPE DUST FILTER ROTARY, VALVE SIZE 6 IN, DESIGN RATING 150 LB, BODY MATERIAL CAST IRON EN 1561, CONNECTION FLANGED RF, OPERATED GEAR MOTOR, APPLICATION HANDLING OF FLUIDS, FFT:LIDS MATERIAL: CAST IRON, ROTOR MATERIAL: CARBON STEEL ST-37; ROTOR OPENED, WITH ROUNDED HOLES; +/- 0.5 BAR AND 1.1 L/TURN, MNFR: GORCO S.A MNFR PART NO: ERS-150C (2946), MNFR DRG 205696 CL REV: 2 ITEM NO: UNK
Stock Number 1523091

VALVE: TYPE PEEPHOLE, DESIGN RATING 300 LB, BODY MATERIAL AL, CONNECTION NPT, SOFTGOODS GASKETS, APPLICATION HP UTILITY BOILER, STANDARD CE, MNFR: CRESTANI MNFR PART NO: UNK, OEM: MACCHI S.P.A OEM PART NO: M11001014, DRAWING SEP-16-115-UY-SG-05ABC-G-0021 REV: 1 ITEM NO: UNK
Stock Number 1248094

VALVE, SOLENOID; VALVE SIZE: 1/4 NPT , TYPE: DUAL SOLENOID , STYLE: 5/3 WAY , ELECTRICAL RATING: 24 VDC, DESIGN RATING: 30-150 PSI, CONNECTION: 1/4 NPT IN, BODY MATERIAL: AL , COIL: F , MEDIUM: AIR , TEMPERATURE RATING: 140 °F, APPLICATION: CYLINDER; FFT: FOR HBR PACKING CONVEYORS AND AUXILIARY EQUIPMENT; P/N: JKF8551G367MO, MNFR: EMERSON - ASCO; MNFR DRG: R30-G-9201-SH.08, REV: 5
Stock Number 1229303

UNINTERRUPTIBLE POWER SUPPLY: APPLICATION CONVERTER, INPUT 7.5 KV, OUTPUT VOLTAGE 4 KV, OUTPUT CURRENT 140 A, FFT:POWER CELL (HERSTELLER), MNFR: SIEMENS MNFR PART NO: A1A10000424.140, DRAWING V-84-7EE-022A-0008 REV: 5 ITEM NO: A1-C3
Stock Number 1194058

TUBE: TYPE RING, SIZE ID 17 X OD 22 X THK 2.5 MM, MATERIAL STEEL, APPLICATION AIR PREHEATER, OEM: ALSTOM POWER ENERGY RECOVERY GMBH OEM PART NO: 123129-32-07-POS7, MNFR DRG SEP-13-220-CA-E-01CB-E-01-Q-0009 REV: 3 ITEM NO: 7
Stock Number 1217668

TRANSMITTER, FLOW: TYPE MULTIVARIABLE, OUTPUT 4–20 MA, ELECTRICAL RATING 85-265 VAC, CONNECTION NPT 3/4 IN, ELECTRICAL CONNECTION 4-WIRE, CLASSIFICATION CL I DIV 2 GP ABCD, MOUNT FIELD MOUNT, FFT:FOR BALL VALVE OF METERING SKID, MNFR: EMERSON MNFR PART NO: 3700A1A05DAEZZZ, SPECIFICATION MANUFACTURER SPECIFICATION REV: UNK ITEM NO: UNK, EQUIP SERIAL NO: 14379886 MNFR: JC FABRICA DE VALVULAS, TAG/EQUIP NO: TE-74102 MNFR: JC FABRICA DE VALVULAS
Stock Number 1225834

TRANSFORMER: TYPE SPECIAL, PRIMARY VOLTAGE 210-240 V, SECONDARY VOLTAGE 110 V, PHASE 3, VA RATING 7.5 KVA, FREQUENCY 50/60 HZ, FFT:FOR B-CABINET R-30IB/B E, MNFR: FANUC MNFR PART NO: A80L-0026-0040
Stock Number 1216586

TIP, NOZZLE: TYPE QUENCHER PORT FULL-JET, SIZE 3/8 IN, MATERIAL SS 316, FFT:SPRAYING SYSTEM FULL-JET, MNFR: SPRAYING SYSTEMS CO. MNFR PART NO: (G-9.5), MNFR DRG SEP-14-112-CA-R-01/CB-R-01-G-0112 REV: 3 ITEM NO: UNK
Stock Number 1203542
